380V Hydraulic Forming Machine For A234 WPB Straight Tee And Reducing Tee

Name: 380V Hydraulic Forming Machine For A234 WPB Straight Tee And Reducing Tee
Brand: GUOZHONG
Price: 1 USD

Brand Name : GUOZHONG

Model Number : GIL168

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Supply Ability : 30 set/year

Delivery Time : 30-45 days

Packaging Details : wooden box and the plastic film

Name : A234 WPB Straight Tee and Reducing Tee Hydraulic forming machine

function : making equal and unequal tee

Voltage : 380V 50Hz 3Phases Or As Your Requirment

Condition : New Condition

Warranty : 1 Year

Control system : PLC

Thickness : sch 40 sch 80

After-sales service provided : Engineers available to service machinery overseas

Contact Now

A234 WPB Straight Tee and Reducing Tee Hydraulic forming machine

Straight Tee making Machine can make the equal tee from the tee making machine which have been designed from the tee mould. If we put the straight tee mold . from the Straight Tee making Machine ,we can get the straight tee and if we change the down mold to the unequal tee, we can get the unequal tee form the tee making machine.

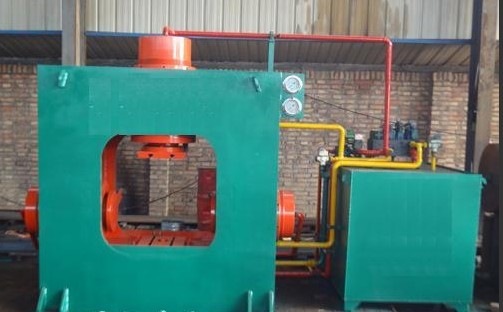

machine photo:

380V Hydraulic Forming Machine For A234 WPB Straight Tee And Reducing Tee

Main Cylinder:ID:650mm,OD:800mm, Piston:400mm,:effective distance:500mm,Press:31.5Mpa=1044.7tons one set
Side cylinder:ID:600,OD:700mm, Piston:750mm,:effective distance 300mm,pressing:31.5Pa=890.19tons two sets
hydraulic pump:oil pump 63SCY-14-1B 2 sets

CB-50 2sets

4..Assistant oil pump: Y-30 Two set

Y-2.2one set

5. Thinkness of the steel plate:60mm

6.Tee Max OD:Ф219mm*SCH40

contact function:

Darcy Dong

wahtsapp no/wechat:008615630731167

email id: guozhong_darcy@pipefittingsmachine.com
